Hello friends! Welcome back to ElectroDuino. This basic electronics blog tutorial is based on the Differential Pressure Sensor – How it Works. In this article, we will discuss What is a Differential Pressure Sensor, Types, Construction, Working Principles, and Applications.

This blog tutorial is sponsored by renkeer.com. Renkeer (Shandong Renke Control Technology Co., Ltd.) is a leading environmental monitoring high-technology enterprise in China. Renkeer is engaged in industrial sensors, communication gateway, industrial data platforms, cloud computing services, and measurement control technology solutions. We have won a good reputation for high-quality products and sincere service.
Renkeer insists on the policy that” technology first, exquisite design, customer satisfied” We are careful with every detail. Every drawing has to be considered and revised repeatedly. Every product is the thought of the designer


Differential pressure is a fundamental concept that plays a crucial role in various fields, from engineering and physics to industries like manufacturing, aerospace, and healthcare. Essentially, it refers to the disparity in pressure between two points in a system. This pressure variance is instrumental in determining fluid flow, gauging filter efficiency, monitoring levels, and ensuring safety in countless applications.


What is Differential Pressure?

Differential pressure(DP) refers to the variance in pressure between two distinct points within a fluid or gas system. Differential pressure is often denoted by the symbol ΔP (Delta P), where Δ signifies “change” and P represents pressure. It is typically measured across a device or component such as a valve, filter, orifice plate, or flow meter. This variance in pressure provides valuable insights into the flow rate, level, or other characteristics of the fluid being monitored. It is measured in units such as pounds per square inch (psi), pascals (Pa), or millimeters of mercury (mmHg), among others.


What is Differential Pressure Sensor?

A differential pressure sensor is a specialized device designed to measure the difference in pressure between two points in a fluid or gas system. Unlike absolute pressure sensors, which measure pressure relative to a vacuum or absolute zero, and gauge pressure sensors, which measure pressure relative to atmospheric pressure, differential pressure sensors focus on the pressure difference between two distinct points within a fluid or gas system. This capability allows for the monitoring and control of fluid flow, filtration, level, and other critical parameters in diverse applications.

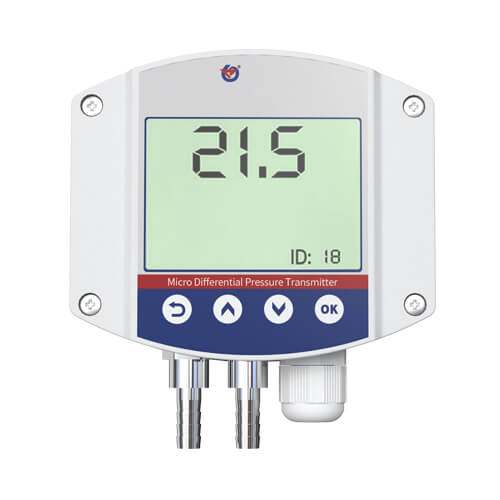

What is Differential Pressure Sensor?: An Ultimate Guide
What is a Differential Pressure Sensor

Types of Differential Pressure Sensors

Differential pressure sensors come in various types, each tailored to specific applications and operating conditions. Here are some common types of differential pressure sensors:

1. Mechanical Deflection:

One of the oldest and most straightforward methods involves a diaphragm or sensing element that deflects in response to pressure changes. As the pressure difference between two points changes, it exerts a force on the diaphragm, causing it to deform. The degree of deformation is then converted into an electrical signal, usually through a transducer mechanism.


2. Capacitive Sensors:

Operating Principle: These sensors operate on the principle of capacitance. They have two metal plates, one fixed and the other movable, with an insulating material (dielectric) between them. As the differential pressure changes, the movable plate (diaphragm) moves, altering the distance between the two plates and thus the capacitance.

Advantages: High sensitivity, fast response time, low power consumption.

Applications: HVAC systems, pneumatic control systems, medical devices.


3. Strain Gauge-based Sensors:

Operating Principle: Strain gauge differential pressure sensors use a strain gauge bridge mechanism where the diaphragm is connected to a set of resistive elements. When the pressure difference causes the diaphragm to deflect, the strain gauges experience mechanical strain, changing their resistance. This change in resistance, often measured as a differential voltage, reflects the pressure difference.

Advantages: High accuracy, robust design, customizable for specific applications.

Applications: Industrial process control, automotive pressure monitoring, fuel cell systems.


4. Piezoelectric Sensors:

Operating Principle: These sensors employ piezoelectric materials that generate an electrical charge when subjected to mechanical stress. The pressure difference deforms the diaphragm, causing mechanical stress on the piezoelectric material, which, in turn, produces a charge. The resulting electrical charge is proportional to the pressure difference and is measured as the sensor’s output.

Advantages: Excellent dynamic response, and resistance to shock and vibration.

Applications: Flow rate measurement, aviation instrumentation, hydraulic systems.


Working Principle of Differential Pressure Sensors

Differential pressure sensors work on the principle of measuring the difference in pressure between two points in a fluid or gas system. This pressure difference is typically caused by factors such as flow rate, fluid density, or obstructions in the system. The sensor detects this pressure difference and converts it into an electrical signal that can be processed and analyzed. Here, we will explore a step-by-step explanation of how a differential pressure sensor works:

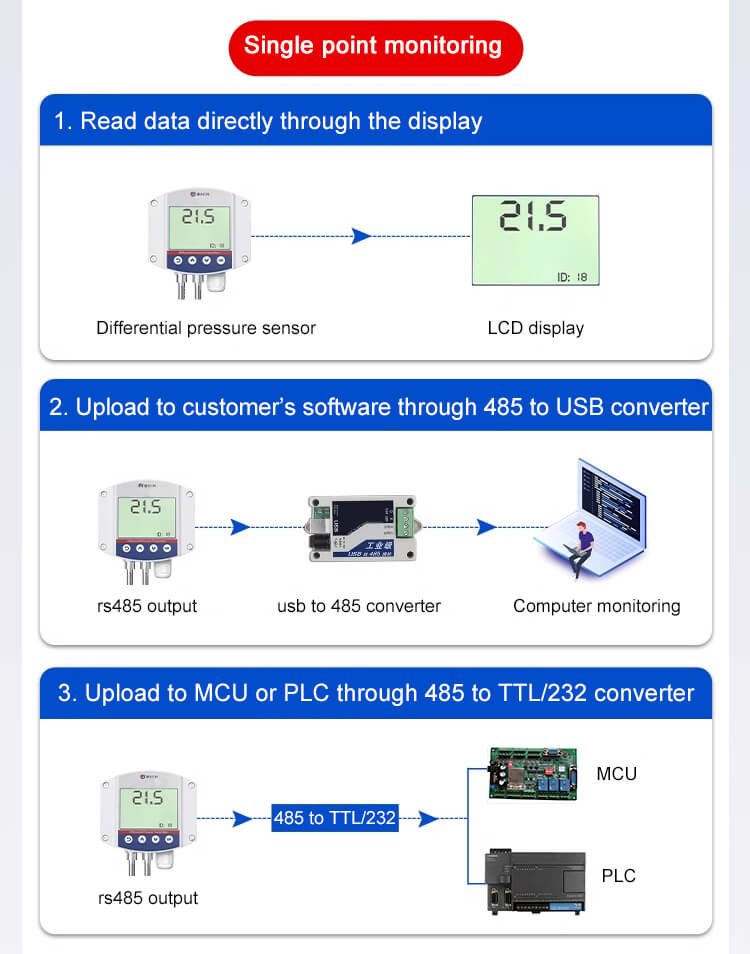

Working of Differential Pressure Sensor, What is a Differential Pressure Sensor, Types, Construction, Working Principles, and Applications.
Working of Differential Pressure Sensor

Sensing Element:

At the core of a differential pressure sensor is the sensing element, which experiences the pressure difference between the two points being measured. Common sensing elements include diaphragms, membranes, or Bourdon tubes. These elements are often made from materials such as silicon, stainless steel, or ceramics, depending on the application requirements.

Pressure Ports:

Differential pressure sensors feature two pressure ports, each connected to the points in the fluid or gas system where the pressure difference is to be measured. One port is typically designated as the high-pressure port, while the other serves as the low-pressure port. The pressure difference between these ports causes the sensing element to deform, initiating the measurement process.

Sensing Mechanism:

When there is a pressure difference between the two ports, it exerts a force on the diaphragm, causing it to deflect. This deflection is detected by the sensing element, which converts the mechanical deformation into an electrical signal. The magnitude of this signal is proportional to the pressure difference.

Transduction Mechanism:

The deformation of the sensing element is translated into an electrical signal through various transduction mechanisms. Common methods include strain gauge configurations, where the deformation of the sensing element changes the resistance of strain gauges bonded to its surface. Capacitive sensing is another technique, where the movement of the sensing element alters the capacitance of a capacitor structure. Piezoelectric materials can also be used, where mechanical deformation generates a voltage proportional to the pressure applied.

Signal Conditioning Circuitry:

The electrical signal generated by the transduction mechanism may require conditioning to enhance its accuracy and stability. Signal conditioning circuitry typically includes amplifiers, filters, and analog-to-digital converters (ADCs) to process the raw signal and prepare it for further analysis or display.

Output Interface:

The processed electrical signal is then outputted through the sensor’s interface, which can be analog (e.g., voltage or current output proportional to pressure) or digital (e.g., using protocols such as I2C or SPI). The output interface allows the sensor to communicate with external devices such as microcontrollers, PLCs (Programmable Logic Controllers), or data acquisition systems. The sensor output is typically calibrated to provide accurate pressure readings in the desired units (e.g., psi, kPa, bar, etc.).


Before being put into use, the sensor is calibrated to ensure its accuracy and reliability. Calibration involves subjecting the sensor to known pressure differentials and comparing the output signal with the expected values. Any discrepancies are adjusted through calibration procedures.

Monitoring and Control:

 Once installed in a system, the differential pressure sensor continuously monitors the pressure difference between the two points. This information can be used for various purposes, such as controlling flow rates, detecting leaks or blockages, or maintaining optimal operating conditions.

Feedback and Adjustment:

In closed-loop systems, the sensor’s output signal may be used as feedback to control actuators, valves, or other components to achieve desired system behavior. For example, in an HVAC system, the sensor’s signal may be used to adjust fan speeds or damper positions to maintain a consistent pressure differential.



Differential pressure sensors have a wide range of applications across various industries, including:

  • HVAC Systems: For monitoring and regulating airflow in ducts.
  • Industrial Processes: For controlling fluid flow rates and monitoring system integrity in manufacturing, chemical processing, and more.
  • Automotive: For applications like tire pressure monitoring and engine airflow management.
  • Aerospace: For monitoring and controlling air and fuel flow in aircraft systems.
  • Medical: For applications like respiratory equipment and blood pressure monitoring.


Considerations and Challenges

  • Accuracy and Calibration: To ensure accurate measurements, differential pressure sensors must be regularly calibrated and maintained.
  • Compatibility: Differential pressure sensors should be compatible with the fluid or gas they are measuring and the environmental conditions in which they operate.
  • Dynamic Range: Sensors should have a wide dynamic range to accommodate varying pressure differences in different applications.
